- Rigorous and scientifically sound reservoir parameter grid assignment, utilizing strict stratigraphic principles for interpolation/extrapolation of various properties.
- Incorporates calibration using results from various rock and fluid standard measurement experiments conducted in top international laboratories.
- Allows assignment of single-category properties such as Vp/Ip/Is or real-time assignment based on given rock type, porosity, and saturation utilizing rock physics.

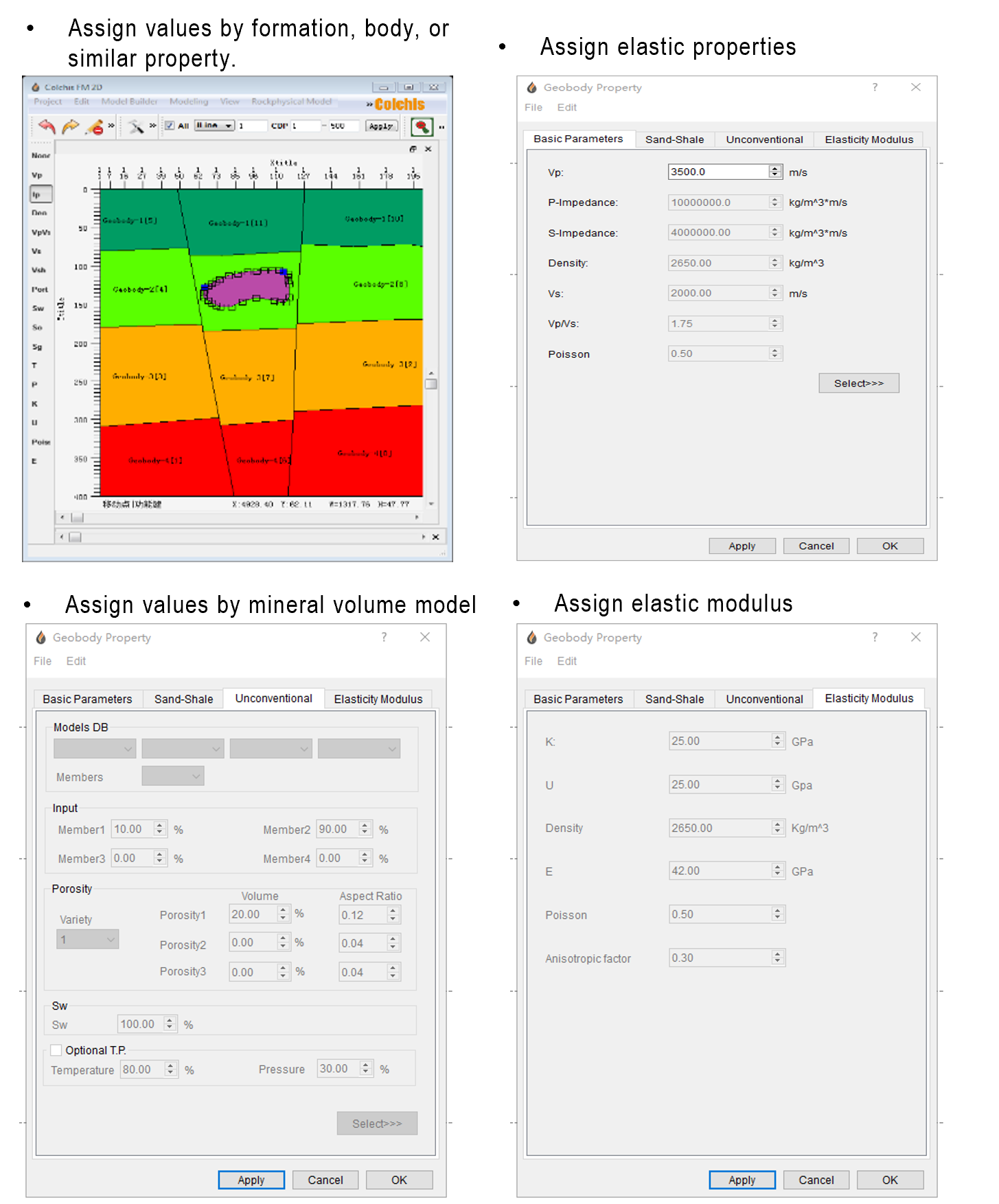

- Enables property assignment based on formation and geological body attributes, while also providing flexible attribute calculators.
- Supports the setting of time-varying and spatially varying parameters for any volume, such as compaction laws, geothermal gradients, and pressure gradients.
Pain points of the industry:
Restore the true response of the formation, delve into the fundamental laws of rock physics, and select sensitive elastic factors optimally.
ROCK PHYSICS
Forward Modeling Software
- Generally, only two major minerals can be processed and synthesized.
- Only one type of pore that develops in pure minerals (sandstone or limestone) can be applied, and the microstructure of the pore is single (single alpha)
- Cannot consider anisotropy and fractures.
- Requires high skills from operators, complex operation, poor interactivity, and poor maintainability.
- The rock physics modeling method and results have not formed a knowledge base, making it difficult to quantitatively compare different regions and strata and challenging to maintain and apply in the later stages.

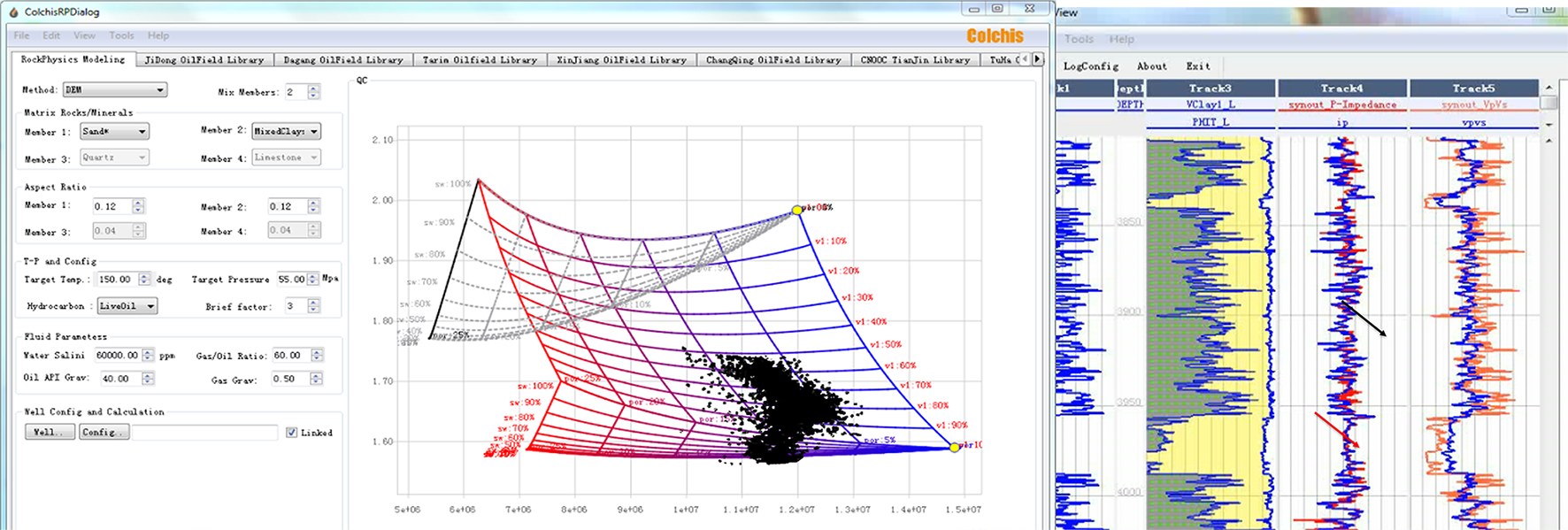

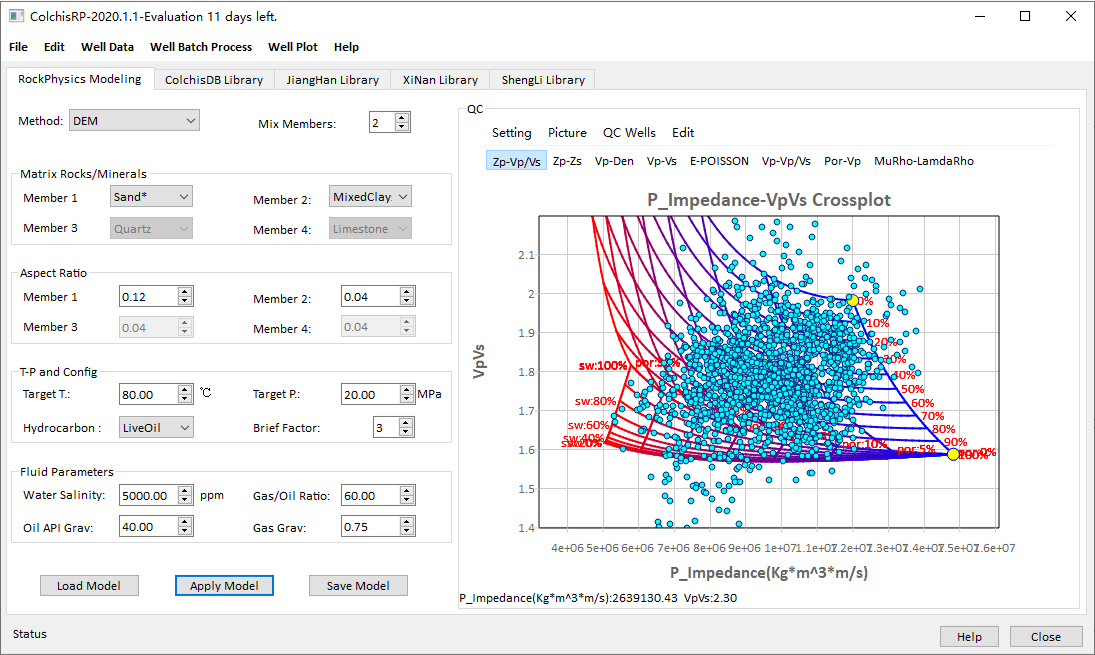

Feature 1. Interactive Rock Physics Forward Modeling
- Supports Xu-White, Differential Effective Medium (DEM), Self-Consistent, Hudson and Xu-Payne models.
- Rock physics forward modeling methods, mineral matrix, porosity, clay content, aspect ratio, fluid parameters, temperature, and pressure can all be interactively modified.
- It has multiple interactive functions, real-time monitoring of forward modeling match degree with well logs and crossplots, and supports batch processing of multiple wells.
- It supports various complex mineral rock physics modeling and is suitable for fast modeling of conventional reservoir layering systems. It provides distinctive solutions for carbonate rocks and unconventional formations.
- Establishment and management of rock physics template libraries:
- 1.Allows loading and management of previous rock physics research results.
- 2.Typical rock physics libraries for major basins/oilfields nationwide have been completed.
Feature 2:Accurate calculation and Assignment of Reservoir Geophysics parameters
